MirageLED is dedicated to the development and application of advanced LED display technology. With over a decade of experience in the industry, our team focuses on the commercial display sector and emphasizes innovation-driven growth, aiming to create a richer, more dynamic visual world.

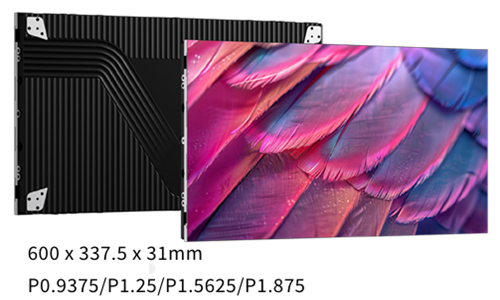

IRIS-S MicroLED (600nits)
Full Flip-Chip COB
Unrivaled visual experience and superior protection.
Slim Design
Ultra-thin 31mm cabinet, just 4.5kg in weight.
16:9 Aspect Ratio
Easily achieve FUHD large screen.
Energy Saving
Common cathode design to reduce power consumption.
Full Front Maintenance
No maintenance channel is required, saving installation space.
Dual Backup for Receiver Card and Power Supply
If the signal receiver or power module fails, it will automatically switch to the backup module.
Specifications
|
Model |
C63-09VT |
C63-12VT |
C63-12VTA |
C63-15VTA |
C63-18VTA |
|---|---|---|---|---|---|
|
Pixel Pitch(mm) |
P0.9375 |
P1.25 |
P1.25 |
P1.5625 |
P1.875 |
|
Resolution |
640×360 |
480×270 |
480×270 |
384×216 |
320×180 |
|
Panel Technology |
Full flip-chip COB |
Full flip-chip COB |
Full flip-chip COB |
Full flip-chip COB |
Full flip-chip COB |
|
Unit Size (W × H × Dmm) |
600 × 337.5 × 31 |
600 × 337.5 × 31 |
600 × 337.5 × 31 |
600 × 337.5 × 31 |
600 × 337.5 × 31 |
|
Surface Treatment |
Matte black finish |
Matte black finish |
Matte black finish |
Matte black finish |
Matte black finish |
|
Brightness(nits) |
600 |
600 |
600 |
600 |
550 |
|
Contrast Ratio |
≤1000000:1 |
≤1000000:1 |
≤1000000:1 |
≤1000000:1 |
≤1000000:1 |
|
Refresh Rate(Hz) |
3840 |
3840 |
3840 |
3840 |
3840 |
|
Power Consumption Max(W/m²) |
370 |
320 |
350 |
350 |
325 |
|
Unit Weight(kg) |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |

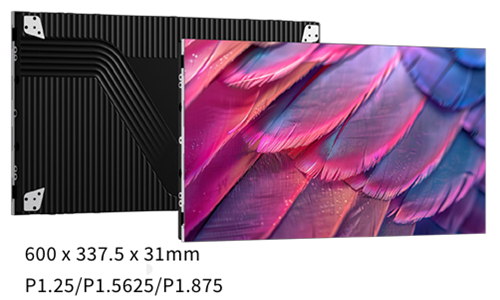

IRIS-S MicroLED (1000nits)
Full Flip-Chip COB
Unrivaled visual experience and superior protection.
Slim Design
Ultra-thin 31mm cabinet, just 4.5kg in weight.
16:9 Aspect Ratio
Easily achieve FUHD large screen.
Energy Saving
Common cathode design to reduce power consumption.
Full Front Maintenance
No maintenance channel is required, saving installation space.
Dual Backup for Receiver Card and Power Supply
If the signal receiver or power module fails, it will automatically switch to the backup module.
Specifications
|
Model |
C63-12VTA(1) |
C63-15VTA(1) |
C63-18VTA(1) |
|---|---|---|---|
|
Pixel Pitch(mm) |
P1.25 |
P1.5625 |
P1.875 |
|
Resolution |
480×270 |
384×216 |
320×180 |
|
Panel Technology |
Full flip-chip COB |
Full flip-chip COB |
Full flip-chip COB |
|
Unit Size (W × H × Dmm) |
600 × 337.5 × 31 |
600 × 337.5 × 31 |
600 × 337.5 × 31 |
|
Surface Treatment |
Matte black finish |
Matte black finish |
Matte black finish |
|
Brightness(nits) |
1000 |
1000 |
1000 |
|
Contrast Ratio |
≤1000000:1 |
≤1000000:1 |
≤1000000:1 |
|
Refresh Rate(Hz) |
3840 |
3840 |
3840 |
|
Power Consumption Max(W/m²) |
330 |
310 |
450 |
|
Unit Weight(kg) |
4.5 |
4.5 |
4.5 |

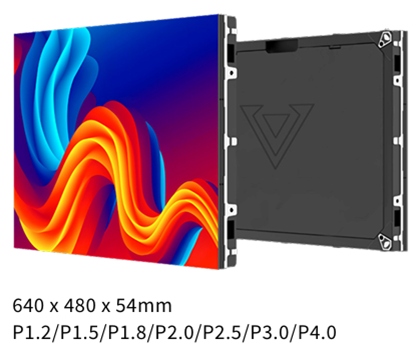

Starry Series LED Panel
Front & Rear Maintenance
The cabinet supports front and rear maintenance and hot swapping.
Module with Cable Free Design
Cable-free connection between the module and panel for easy installation.
Simple and Orderly
Built-in cabinet cascading cables eliminate, resulting in a simple and orderly appearance.
Multiple Pixel Pitch Options
Compatible with pixel pitches from P1.2- P4.0, suitable for various applications.
Die-casting Aluminum Cabinet
Providing high hardness, lightweight,
excellent heat dissipation, and more.
Flexible Installation
Supports fixed-mounting and wall-mounting.
Specifications
|
Model |
U64-12VA |
U64-15VA |
U64-18VA |
U64-20VA |
U64-25VA |
U64-30VA |
U64-40VA |
|---|---|---|---|---|---|---|---|
|
Pixel Pitch(mm) |
P1.2 |
P1.5 |
P1.8 |
P2.0 |
P2.5 |
P3.0 |
P4.0 |
|
Resolution |
512×384 |
416×312 |
344×258 |
320×240 |
256×192 |
208×156 |
160×120 |
|
Panel Technology |
SMD |
SMD |
SMD |
SMD |
SMD |
SMD |
SMD |
|
Unit Size (W × H × Dmm) |
640 × 480 × 54 |
640 × 480 × 54 |
640 × 480 × 54 |
640 × 480 × 54 |
640 × 480 × 54 |
640 × 480 × 54 |
640 × 480 × 54 |
|
Brightness(nits) |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
|
Contrast Ratio |
4000:1 |
4000:1 |
4000:1 |
4000:1 |
4000:1 |
4000:1 |
4000:1 |
|
Refresh Rate (Hz) |
3840 |
3840 |
3840 |
3840 |
3840 |
3840 |
3840 |
|
Power Consumption Max (W/m²) |
650 |
650 |
650 |
650 |
650 |
650 |
650 |
|
Unit Weight (kg) |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
